Out Of Stock
Pedders Standard Uprated Rear Coil Springs
Pedders quality and performance, Sold as a pair See more detail
Choose your vehicle to ensure compatibility | Choose Vehicle |
£148.80
£124.00
Add to Wishlist
Product Code:
COIL016
Order by 15:00 mon-fri for same day dispatch.
28 Day returns or exchange.
1 Year Parts Warranty

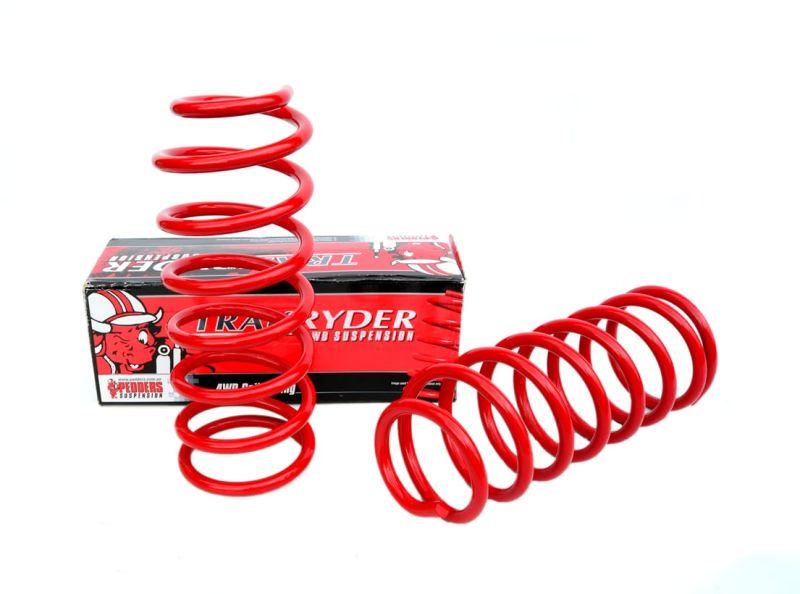

A Pair of Pedders Australian Standard uprated rear coil springs for the Land Cruiser 80 series models finished in Red Epoxy coating.
These new coils offer those customers that want something a little firmer than standard especially when towing or loaded. With an increase in wire diameter up to 17mm, these rear coils have a spring rate of 190 lb/In. Approx. ride heights listed below
Use replacements shock absorbers Pedders SUSP009 or Monroe SUSM011-01 if required.
Approx. Rear ride height: - bottom of rim up to arch: - usually a 10mm discrepancy (Provided by customers)
A good tip is to put a jack under the chassis / tow bar to replicate the height before ordering
16" rims = 760 mm
17" rims = 773 mm
18" rims = 785 mm
About the coils:
- The coils are sold as a pair
- Pedders rear coils are not handed and have been redesigned for these specific models.
- You may notice a difference in overall length when you remove your old coils, however, with the increase in wire diameter, materials and design, once fitted the coil does not compress as much as the original Toyota rear coil and so in turn provides more stability to the rear end without jacking the truck up to high.
- Pedders Cois meet QS9001 standards
- Every coil is shot peened to relieve stress in the material and increasing the lifespan and durability
- Pedders also carry out "Scragging" a process of over compressing each coil with effectively pre-sets the spring determining it's ride height
- Each and every coil is Load tested rather than batch tested.
- Finally, the coils are powder coated in Pedders unique red for a durable protective finish.
Great quality rear coils from a recognized brand that won't lift too high but firm up the ride, sold as a pair.
| Weight | 16.200000 |
|---|---|
| Manufacturer | Pedders |
| MPN (Manufacturer Part Number) | 7290 |
| Warranty Options | 1 Year Parts Warranty |
| Fitting Position | Rear Suspension LH & RH |
| Unit of Sale | Two Coils |
| Specs & Fitment | Spring Rate: 190 Lbs/in |
Vehicle Compatibility
Below are a list of compatible vehicle for this product.
- Toyota Land Cruiser HDJ80R 4.2cc (1HDT) Diesel (12 Valve) RHD (G - L reg, 1/1990-7/1994) UK
- Toyota Land Cruiser HDJ80R 4.2cc (1HDFT) Diesel (24 Valve) RHD (M - S reg, 1/1995-1/1998) UK
- Toyota Land Cruiser HDJ81 4.2cc (1HDT) Diesel (12 Valve) RHD (G - M reg, 1/1990-1/1995) Import
- Toyota Land Cruiser HDJ81 4.2cc (1HDFT) Diesel (24 Valve) RHD (M - S reg, 1/1995-1/1998) Import
- Toyota Land Cruiser FZJ80 4.5cc (1FZFE) Straight-6 Petrol (EFI) RHD (K - S reg, 1/1990-1/1998)
SERVICE KITS for your Toyota
You have not selected a Toyota model to filter these products yet.
Choose your vehicle to ensure compatibility
Change Vehicle
Delivery Information - Cut-off Time 15:00 Monday-Friday
> Click here for our Opening Hours and Delivery Times
Free Delivery - Orders Over £90 (Online Orders Only / 2-5 day service) subject to Terms & Conditions*
At checkout enter your delivery Postcode - the available options and charges will be provided depending on the product and location prior to any purchase.
*Excludes Islands and some Scottish postcodes where surcharges apply, click here for exclusions. Free delivery is not valid on any telephone order.
PLEASE NOTE: Orders placed before 15:00 weekdays will be dispatched on the same day subject to stock and points below. Orders placed after 15:00 on Friday or over the weekend will be dispatched on the following Monday.
If you wish to make any additions or alternations to your initial order you will need to let us know before 12.00 noon.
We are closed over Bank Holidays.
For full details please visit to our Deliveries page.
International Delivery – Cut-off 12 Noon Monday-Friday
RoughTrax offers fast, reliable, and affordable service as standard, we make sending your international order easy with an online tracking system sent straight to your email once despatched.
To confirm a delivery price simply add products to your basket, select your country and enter your postcode in the delivery field. The website will automatically calculate your delivery price. Goods can be sent worldwide.
All International orders are sent with FedEx, Parcelforce or DHL depending on the product/s & service you have selected.
For full details please visit our International Deliveries page.
Arrange Own Courier
If a delivery method is not available, an option of “Arrange My Own Courier” will display. This enables you to order through the website and arrange your own courier for your goods to be collected directly from RoughTrax in Bristol, UK.
For full details please visit to our Arrange My Own Courier page.
Returns
At RoughTrax we know that sometimes you will need to return items.
- All products must be re-sellable and returned along with the original packaging and documents. (Stock to order or Special order items are non-returnable).
- Goods must be returned within 28 days of purchase as per our Terms and Conditions
- Products must be returned to RoughTrax at RoughTrax Ltd, Units 4-7 Pixash Business Centre, Pixash Lane, Keynsham, Bristol. BS31 1TP United Kingdom
If Returned parts that qualified for Free Delivery.
If you return a product(s) that qualified you for Free Delivery and the remainder of your order does not exceed the £90 Free Delivery Promotion, then RoughTrax reserve the right to charge carriage for the remaining products purchased to cover the carriage cost.
Please visit our Returns page to download a returns form and for further information.
Write Your Own Review
Questions & Answers for Pedders Standard Uprated Rear Coil Springs
What's the ride like?
The road handling is much improved, cornering, feedback and overall performance far better than the original yet not too hard. Also when loaded the coils perform superbly especially when loaded.
This info is from actual customers that have already fitted the coils and left feedback with us. We also have several local customers that tow trailers etc, all have been very happy with the performance of the Pedders coil.
